Framework Laptop 13 Deep Dive - A laptop webcam with smartphone technology

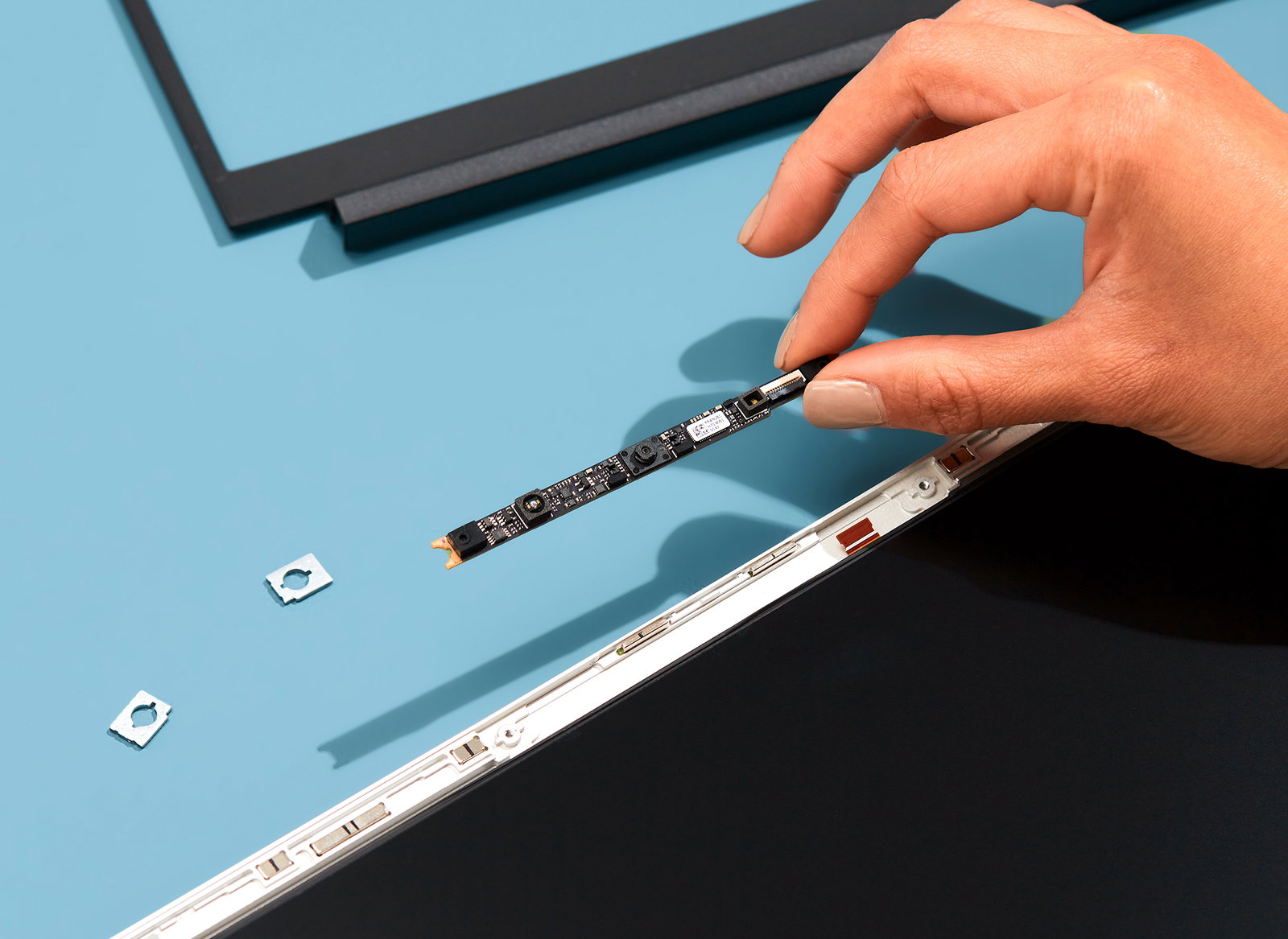

Today we’re sharing more about the new second generation Webcam Module we developed alongside Framework Laptop 13 (Intel Core Ultra Series 1). Webcams in laptops often have poor image quality because laptop makers prioritize making the top bezel as narrow as possible, limiting the size of image sensors that can fit to tiny optical formats like ⅛” or even smaller (that’s smaller than a grain of rice). Worse, the image sensors available for notebooks typically use several-generation old sensing technology. All of this has resulted in a world where our smartphone cameras continue to achieve mind-blowing improvements in quality every year while our laptops are stuck with a grainy mess in a time when video conferencing is used more than ever.

We’ve been closely following image sensor roadmaps from suppliers to get around this challenge and were excited to see Omnivision announce the 9.2MP OV08X sensor in late 2022. This was the first and possibly only recent sensor bringing new smartphone image sensor technologies into a laptop-ready 1/5.7” optical format. The two most important improvements this sensor brings are backside illumination (BSI) and pixel binning. BSI is an image sensor manufacturing process improvement that enables much greater light sensitivity by moving the photodiode layer that measures light closer to the sensor surface. In the OV08X, BSI comes in the form of what Omnivision calls “PureCel Plus-2”, which is their marketing name for their set of advancements beyond traditional BSI that reduce pixel cross-talk.

With pixel binning, instead of using the 9.2MP image sensor at its native resolution, each group of four subpixels are grouped together into one larger, more light-sensitive subpixel. This means we can run the sensor at 1080p natively, which is what video conferencing applications can use directly. Between BSI and pixel binning, low light performance on this webcam is substantially better than our first generation camera. All of these improvements sound great, but of course it’s best to get a real look at the results. We’ve posted a video on our YouTube channel with comparisons between our original and new webcam modules in a few lighting conditions.

We’ve made a few interesting improvements beyond picking a better image sensor. We worked with our Taiwan-based partner Chicony (who also manufactures our 180W Power Adapter for Framework Laptop 16) to make the new module. A great sensor of course needs to be paired with an excellent lens. We used a 5-element 2.0 f-stop lens (up from 4-element in the original webcam) with a wider 87 degree field of view. We’ve also brought in new 67 dB SNR microphones from AAC for greater audio clarity. We’ve made some improvements in the hardware privacy switch circuitry to slightly reduce standby power consumption too. The privacy switch behavior on the camera also uses a new mode where instead of powering off the full camera, it cuts off the image sensor power and generates a placeholder blank image in the camera controller. This results in better behavior in applications and faster privacy mode switching.

We’re excited for you to get a look at this new Webcam Module when we start shipping it this August. The module comes pre-installed on Framework Laptop 13 (Intel Core Ultra Series 1) and the new Ryzen 7040 Series configurations with the 2.8k display. It’s also compatible with all of our existing Framework Laptop 13 and Framework Laptop 16 models, so you can pick it up in the Framework Marketplace and upgrade the laptop you already own.

Framework Laptops

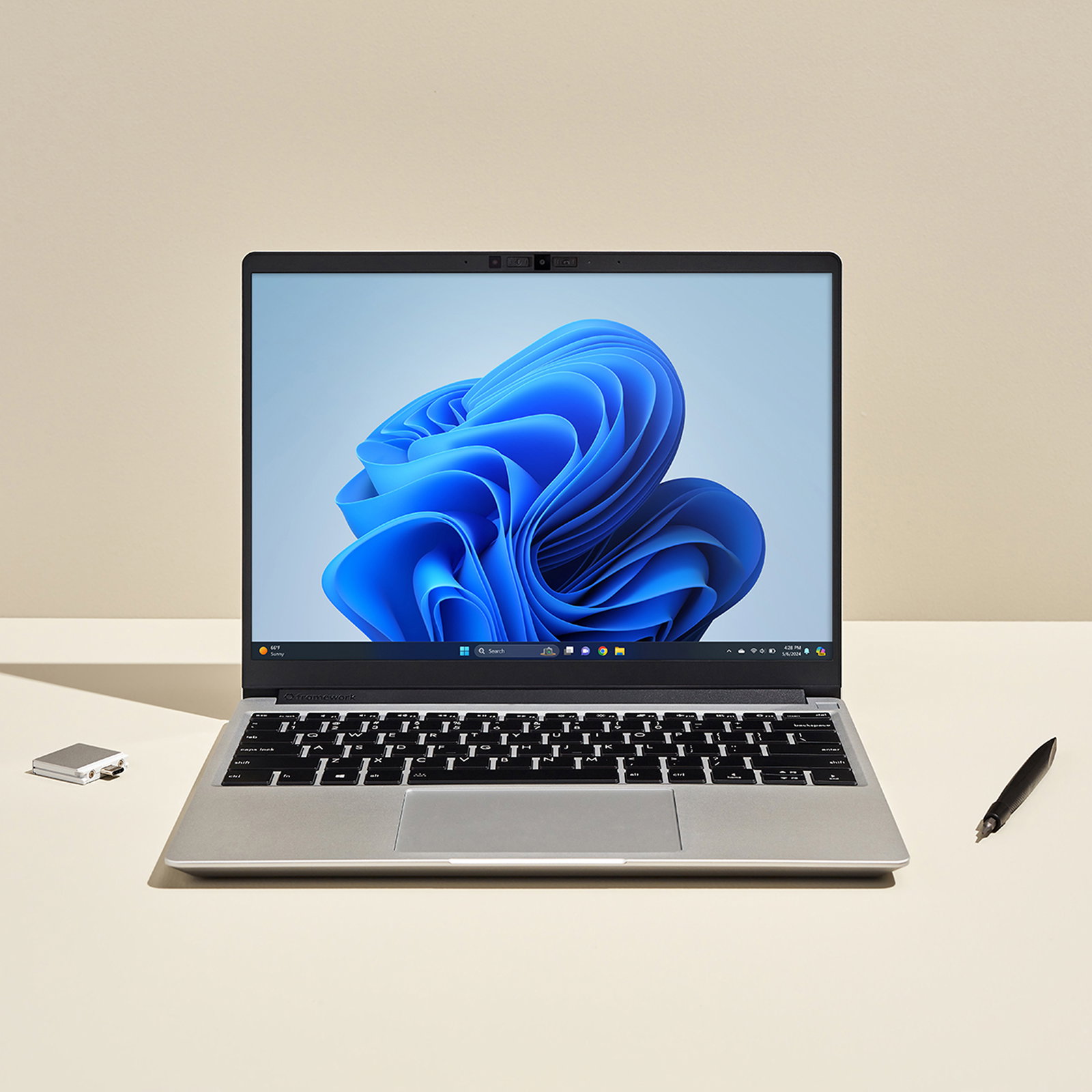

Framework Laptop 13

Framework Laptop 13 is a thin, light, fast 13.5” notebook that is simple to customize, upgrade, and repair, so it stays yours for longer. Now available with the latest Intel Core Ultra Series 1 processors.

Shop Framework Laptop 13

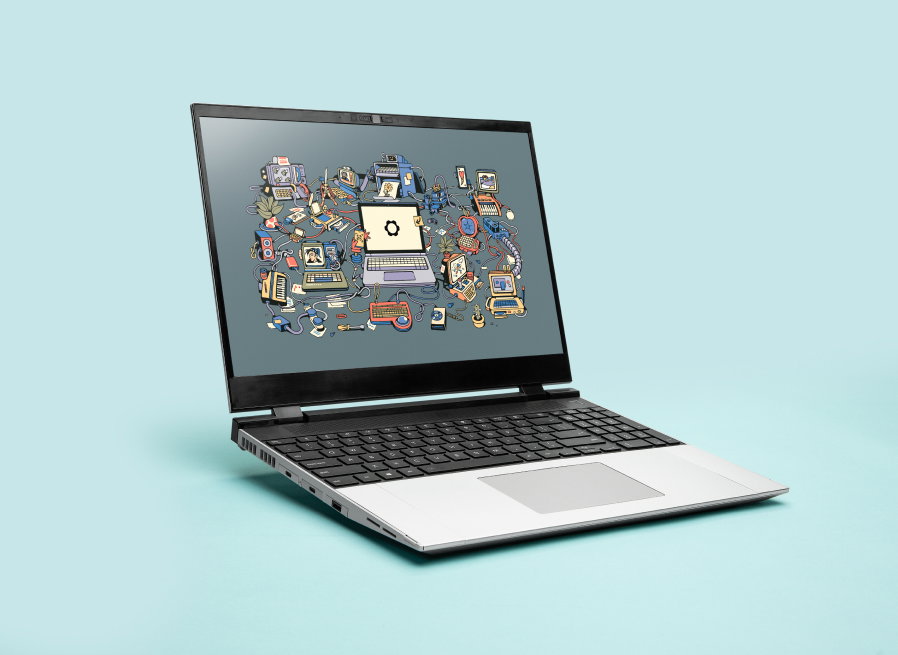

Framework Laptop 16
